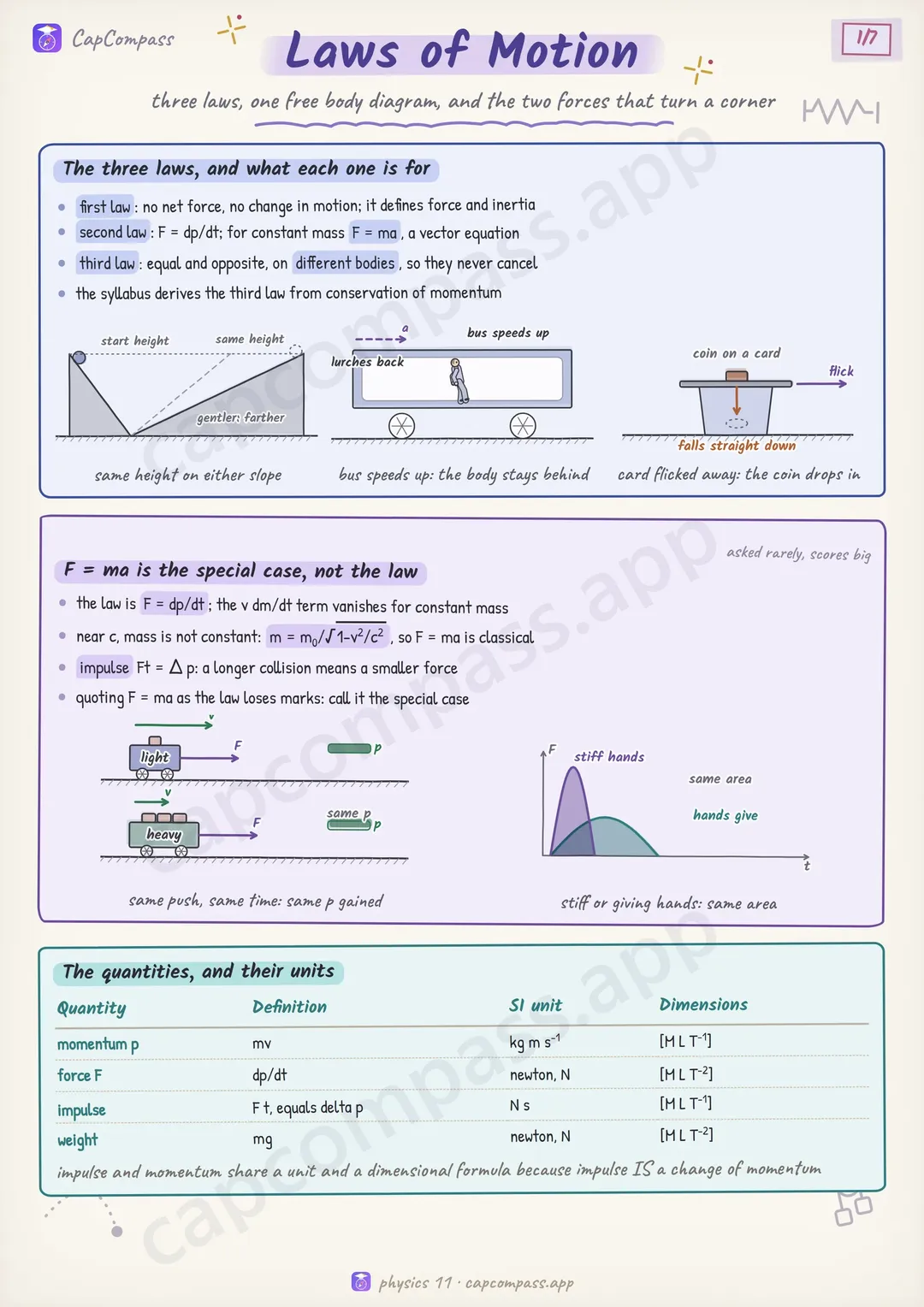

Laws of Motion in one look
three laws, one free body diagram, and the two forces that turn a corner
The three laws, and what each one is for
- first law: no net force, no change in motion; it defines force and inertia
- second law: F = dp/dt; for constant mass F = ma, a vector equation
- third law: equal and opposite, on different bodies, so they never cancel
- the syllabus derives the third law from conservation of momentum
F = ma is the special case, not the law
- the law is F = dp/dt; the v dm/dt term vanishes for constant mass
- near c, mass is not constant: m = m_0/√1-v^2/c^2, so F = ma is classical
- impulse Ft = Δ p: a longer collision means a smaller force
- quoting F = ma as the law loses marks: call it the special case
The quantities, and their units
| Quantity | Definition | SI unit | Dimensions |
|---|---|---|---|
| momentum p | mv | kg m s^-1 | [M L T^-1] |
| force F | dp/dt | newton, N | [M L T^-2] |
| impulse | F t, equals delta p | N s | [M L T^-1] |
| weight | mg | newton, N | [M L T^-2] |
Page 1 of 7. The full sheet, all 7 pages, opens free in the app.
What this Laws of Motion sheet covers
- The three laws, and what each one is for
- F = ma is the special case, not the law
- The quantities, and their units
- Action and reaction
- Conservation of linear momentum
- Equilibrium of a particle
- Solving any mechanics problem, in this order
- Isolate
- Draw
- Resolve
- Solve
- Free body diagrams, and connected bodies
- Wedges and ladders
- What a balance reads
- angle of repose
- angle of friction
- Friction, and the two regimes
- The friction results a question will want
- Friction on a slope
- Circular motion needs a force, not a new one
- Turning a corner, three cases
- Pseudo forces
- Pseudo force in a lift and on a giant wheel
- Changing mass: rockets, chains, sand
- Traps that cost marks
- Tricks that save time
