Current Electricity — Class 12 ISC Physics revision notes

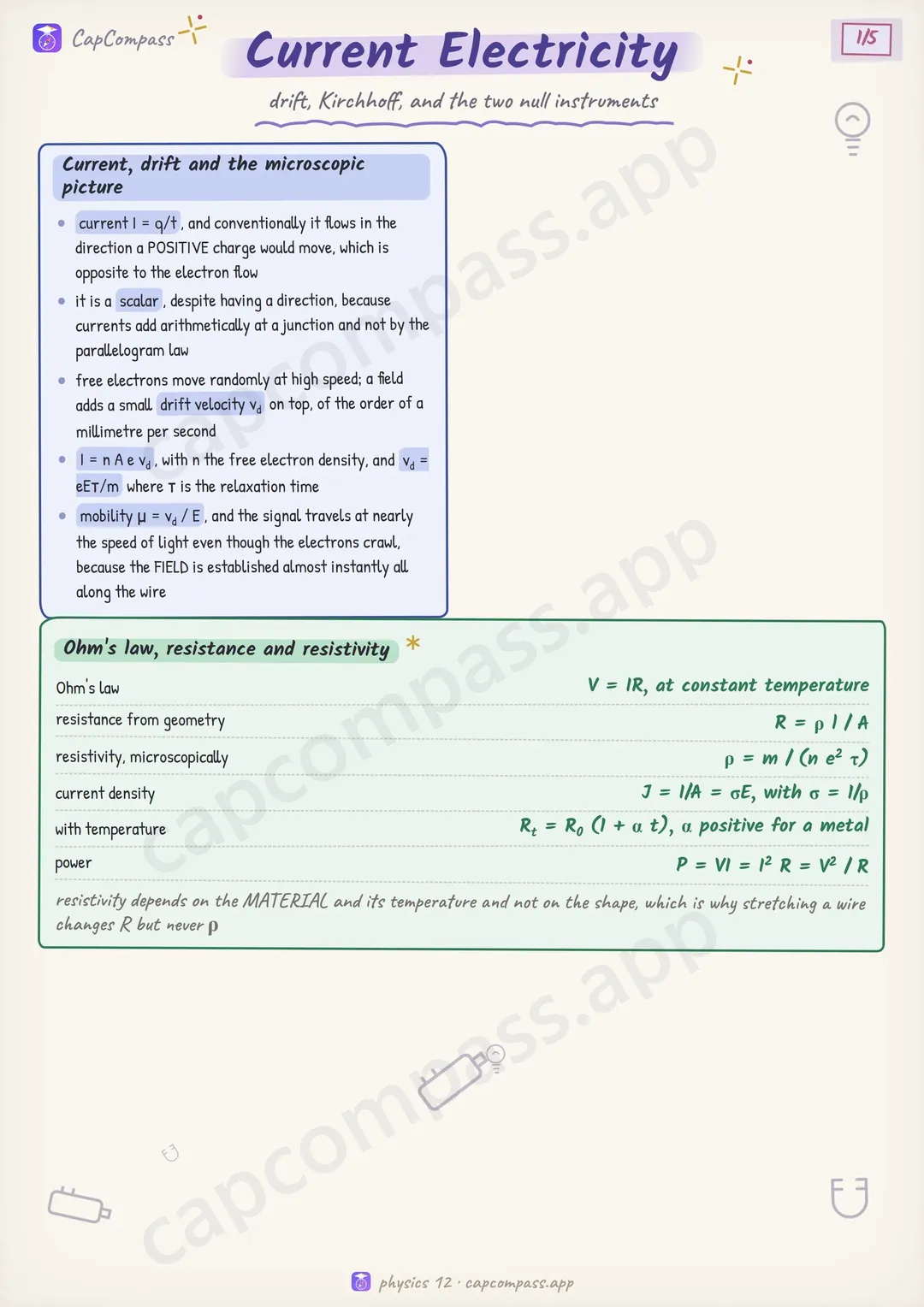

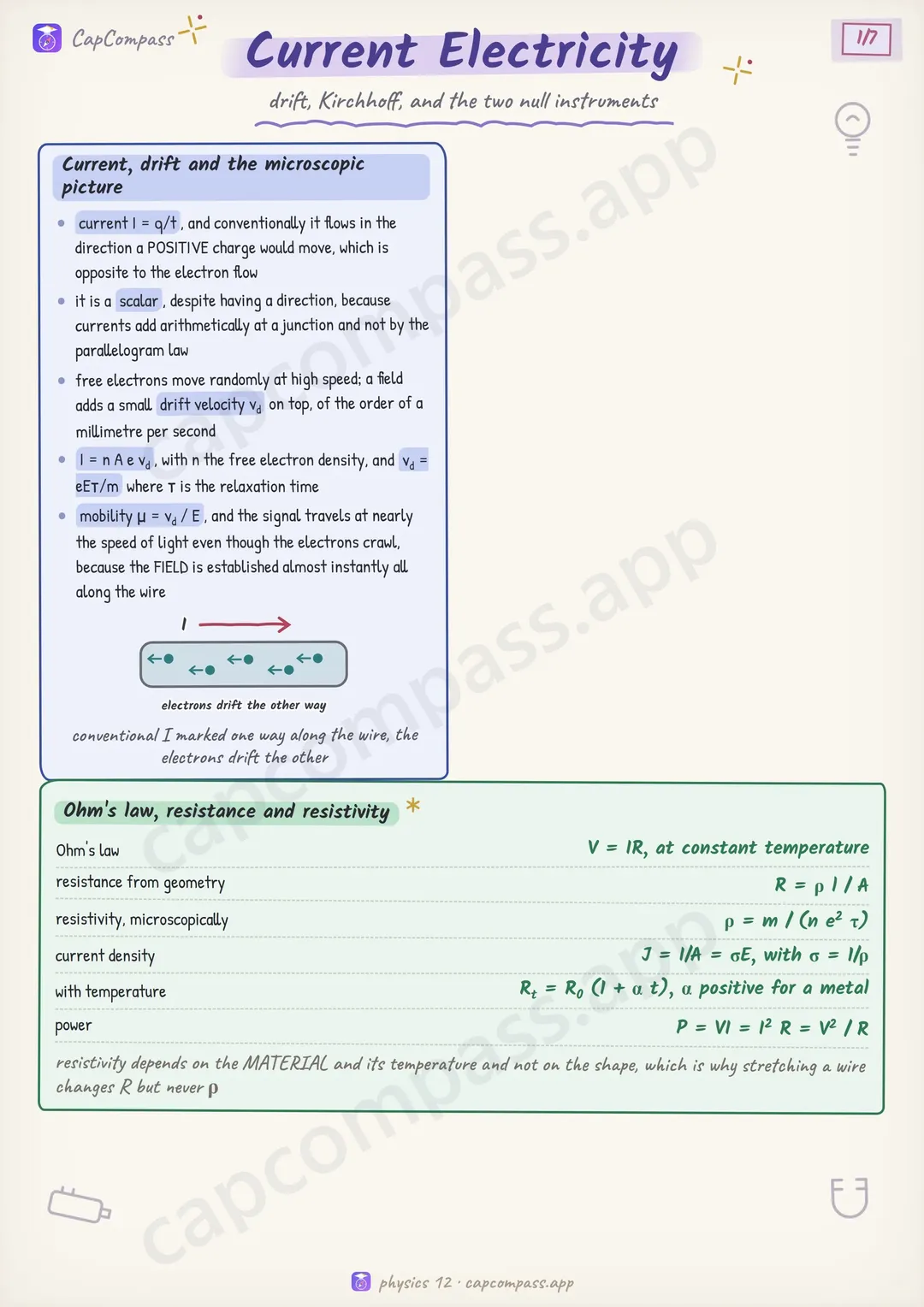

A 7-page visual revision sheet for Current Electricity, written for Class 12 ISC Physics. Formulas, diagrams and the traps that cost marks, laid out to be read the night before rather than the term before. Free, and it opens inside CapCompass.
Page 1 as PDF
Current Electricity in one look
drift, Kirchhoff, and the two null instruments
Current, drift and the microscopic picture
- current I = q/t, and conventionally it flows in the direction a POSITIVE charge would move, which is opposite to the electron flow
- it is a scalar, despite having a direction, because currents add arithmetically at a junction and not by the parallelogram law
- free electrons move randomly at high speed; a field adds a small drift velocity v_d on top, of the order of a millimetre per second
- I = n A e v_d, with n the free electron density, and v_d = eEτ/m where τ is the relaxation time
- mobility μ = v_d / E, and the signal travels at nearly the speed of light even though the electrons crawl, because the FIELD is established almost instantly all along the wire
Ohm's law, resistance and resistivity
- Ohm's law
V = IR, at constant temperature - resistance from geometry
R = ρ l / A - resistivity, microscopically
ρ = m / (n e^2 τ) - current density
J = I/A = σE, with σ = 1/ρ - with temperature
R_t = R_0 (1 + α t), α positive for a metal - power
P = VI = I^2 R = V^2 / R
