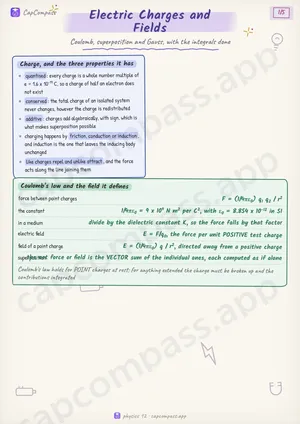

Electric Charges and Fields in one look
Coulomb, superposition and Gauss, with the integrals done
Charge, and the three properties it has
- quantised: every charge is a whole number multiple of e = 1.6 x 10^-19 C, so a charge of half an electron does not exist
- conserved: the total charge of an isolated system never changes, however the charge is redistributed
- additive: charges add algebraically, with sign, which is what makes superposition possible
- charging happens by friction, conduction or induction, and induction is the one that leaves the inducing body unchanged
- like charges repel and unlike attract, and the force acts along the line joining them
Coulomb's law and the field it defines
- force between point charges
F = (1/4πε_0) q_1 q_2 / r^2 - the constant
1/4πε_0 = 9 x 10^9 N m^2 per C^2, with ε_0 = 8.854 x 10^-12 in SI - in a medium
divide by the dielectric constant K, so the force falls by that factor - electric field
E = F/q_0, the force per unit POSITIVE test charge - field of a point charge
E = (1/4πε_0) q / r^2, directed away from a positive charge - superposition
the net force or field is the VECTOR sum of the individual ones, each computed as if alone
