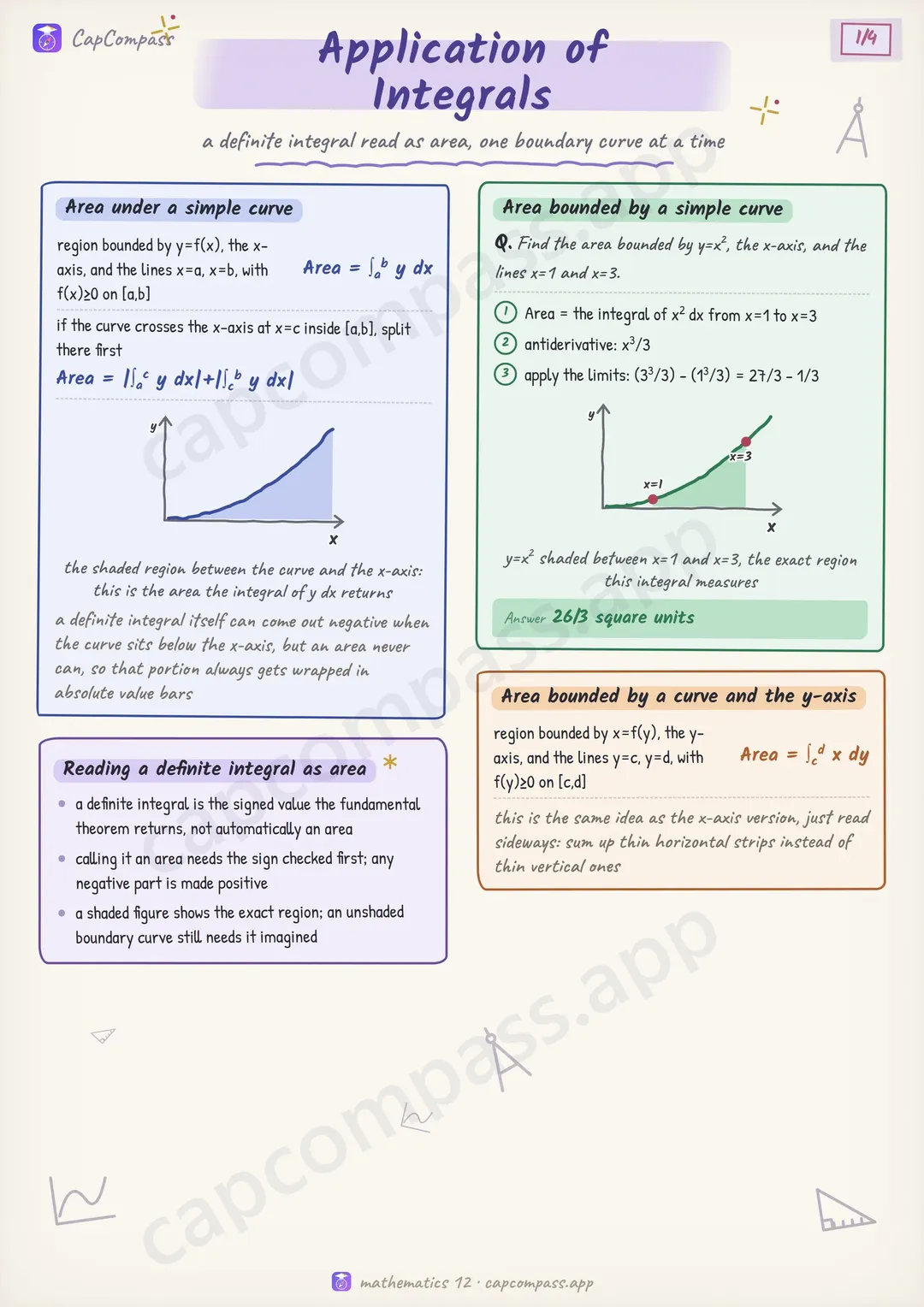

Application of Integrals in one look
a definite integral read as area, one boundary curve at a time
Area under a simple curve
- region bounded by y=f(x), the x-axis, and the lines x=a, x=b, with f(x)>=0 on [a,b]
Area = ∫_a^b y dx - if the curve crosses the x-axis at x=c inside [a,b], split there first
Area = Big|∫_a^c y dxBig|+Big|∫_c^b y dxBig|
Reading a definite integral as area
- a definite integral is the signed value the fundamental theorem returns, not automatically an area
- calling it an area needs the sign checked first; any negative part is made positive
- a shaded figure shows the exact region; an unshaded boundary curve still needs it imagined
Area bounded by a simple curve
Q. Find the area bounded by y=x^2, the x-axis, and the lines x=1 and x=3.
- Area = the integral of x^2 dx from x=1 to x=3
- antiderivative: x^3/3
- apply the limits: (3^3/3) - (1^3/3) = 27/3 - 1/3
Answer: 26/3 square units
Area bounded by a curve and the y-axis
- region bounded by x=f(y), the y-axis, and the lines y=c, y=d, with f(y)>=0 on [c,d]
Area = ∫_c^d x dy
Page 1 of 4. The full sheet, all 4 pages, opens free in the app.
What this Application of Integrals sheet covers
- Area under a simple curve
- region bounded by y=f(x), the x-axis, and the lines x=a, x=b, with f(x)>=0 on [a,b]
- if the curve crosses the x-axis at x=c inside [a,b], split there first
- Reading a definite integral as area
- Area bounded by a simple curve
- Area bounded by a curve and the y-axis
- region bounded by x=f(y), the y-axis, and the lines y=c, y=d, with f(y)>=0 on [c,d]
- A curve that closes on itself
- Circles and ellipses, from integration
- circle of radius r, centred at the origin
- ellipse with semi-axes a and b
- Area between two curves
- f(x)>=g(x) throughout [a,b]
- Which curve is on top, and do they cross
- Setting up the integral correctly
- Symmetry shortcuts
- curve symmetric about the y-axis, region spanning x=-a to x=a
- curve symmetric about the x-axis, region spanning y=-b to y=b
- Choosing the strip: dx vs dy
- dx strips (integrate in x)
- dy strips (integrate in y)
- Common enclosed shapes and their setup
- Circle
- Parabola and a line
- Ellipse
- Two intersecting parabolas
- Traps that cost marks
- Tricks that save time
