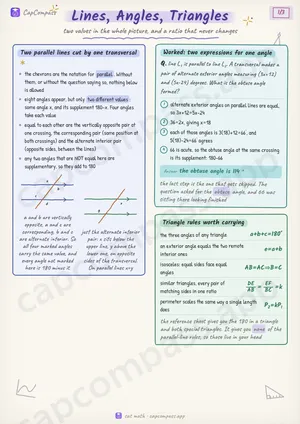

Page 1 as PDF
Lines, Angles, Triangles in one look
two values in the whole picture, and a ratio that never changes
Two parallel lines cut by one transversal
- the chevrons are the notation for parallel. Without them, or without the question saying so, nothing below is allowed
- eight angles appear, but only two different values: some angle x, and its supplement 180-x. Four angles take each value
- equal to each other are the vertically opposite pair at one crossing, the corresponding pair (same position at both crossings) and the alternate interior pair (opposite sides, between the lines)
- any two angles that are NOT equal here are supplementary, so they add to 180
Worked: two expressions for one angle
Q. line L_1 is parallel to line L_2. A transversal makes a pair of alternate exterior angles measuring (3x+12) and (5x-24) degrees. What is the obtuse angle formed?
- alternate exterior angles on parallel lines are equal, so 3x+12=5x-24
- 36=2x, giving x=18
- each of those angles is 3(18)+12=66°, and 5(18)-24=66° agrees
- 66 is acute, so the obtuse angle at the same crossing is its supplement: 180-66
Answer: the obtuse angle is 114°
Triangle rules worth carrying
- the three angles of any triangle
a+b+c=180° - an exterior angle equals the two remote interior ones
e=a+b - isosceles: equal sides face equal angles
AB=AC⇒ B=C - similar triangles, every pair of matching sides in one ratio
DE/AB=EF/BC=k - perimeter scales the same way a single length does
P_2=kP_1
