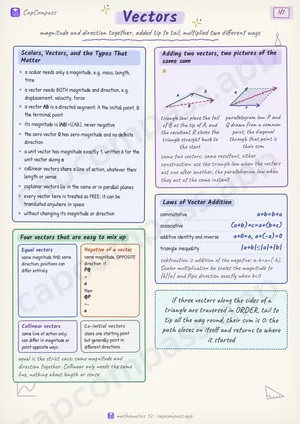

Page 1 as PDF
Vectors in one look
magnitude and direction together, added tip to tail, multiplied two different ways
Scalars, Vectors, and the Types That Matter
- a scalar needs only a magnitude, e.g. mass, length, time
- a vector needs BOTH magnitude and direction, e.g. displacement, velocity, force
- a vector AB is a directed segment: A the initial point, B the terminal point
- its magnitude is |AB|=l(AB), never negative
- the zero vector 0 has zero magnitude and no definite direction
- a unit vector has magnitude exactly 1, written a for the unit vector along a
- collinear vectors share a line of action, whatever their length or sense
- coplanar vectors lie in the same or in parallel planes
- every vector here is treated as FREE: it can be translated anywhere in space
- without changing its magnitude or direction
Four vectors that are easy to mix up
- Equal vectors: same magnitude AND same direction; positions can differ entirely
- Negative of a vector: same magnitude, OPPOSITE direction: if PQ=a then QP=-a
- Collinear vectors: same line of action only; can differ in magnitude or point opposite ways
- Co-initial vectors: share one starting point but generally point in different directions
Laws of Vector Addition
- commutative
a+b=b+a - associative
(a+b)+c=a+(b+c) - additive identity and inverse
a+0=a, a+(-a)=0 - triangle inequality
|a+b|≤|a|+|b|
Page 1 of 7. The full sheet, all 7 pages, opens free in the app.
What this Vectors sheet covers
- Scalars, Vectors, and the Types That Matter
- Four vectors that are easy to mix up
- Equal vectors
- Negative of a vector
- Collinear vectors
- Co-initial vectors
- Adding two vectors, two pictures of the same sum
- Laws of Vector Addition
- commutative
- associative
- additive identity and inverse
- triangle inequality
- Position Vectors and Points in Space
- Section Formula
- R divides AB internally in ratio m:n
- R divides AB externally in ratio m:n
- midpoint of AB, the case m=n
- centroid of a triangle A,B,C
- Special Cases: Coplanar, Collinear, Zero Vectors
- Section formula, internal and external
- Midpoint theorem, proved by vectors
- Diagonals of a parallelogram bisect each other
- Components, Direction Cosines and Direction Ratios
- The One Identity Every d.c. Triple Obeys
- direction cosines always satisfy
- unit vector written from its d.c.s
- d.c.s FROM d.r.s a,b,c, writing d=√a^2+b^2+c^2
- Direction cosines from components
- Scalar (Dot) Product: always a number
- Dot Product vs Cross Product
- Dot, a . b
- Cross, a x b
- Dot Product, in components
- for a=a_1i+a_2j+a_3k, b=b_1i+b_2j+b_3k
- a vector dotted with itself
- angle between two vectors
- scalar projection of b on a
- vector projection of b on a
- Dot product, angle between two vectors
- Vector (Cross) Product: always a vector
- Cross Product, in components, and area
- for a=(a_1,a_2,a_3), b=(b_1,b_2,b_3), the product is
- area of the parallelogram on a and b
- area of the triangle on a and b
- Cross product and area of a triangle
- Which product do you actually need?
- Scalar Triple Product (Box Product)
- Box Product, Volumes, and the Determinant
- for a,b,c with components a_i,b_i,c_i
- volume of the parallelepiped with coterminus edges a,b,c
- volume of the tetrahedron with coterminus edges a,b,c
- coplanarity test for a,b,c
- Volume of a parallelepiped, and a coplanarity check
- Symbols
- Traps that cost marks
- Tricks that save time
