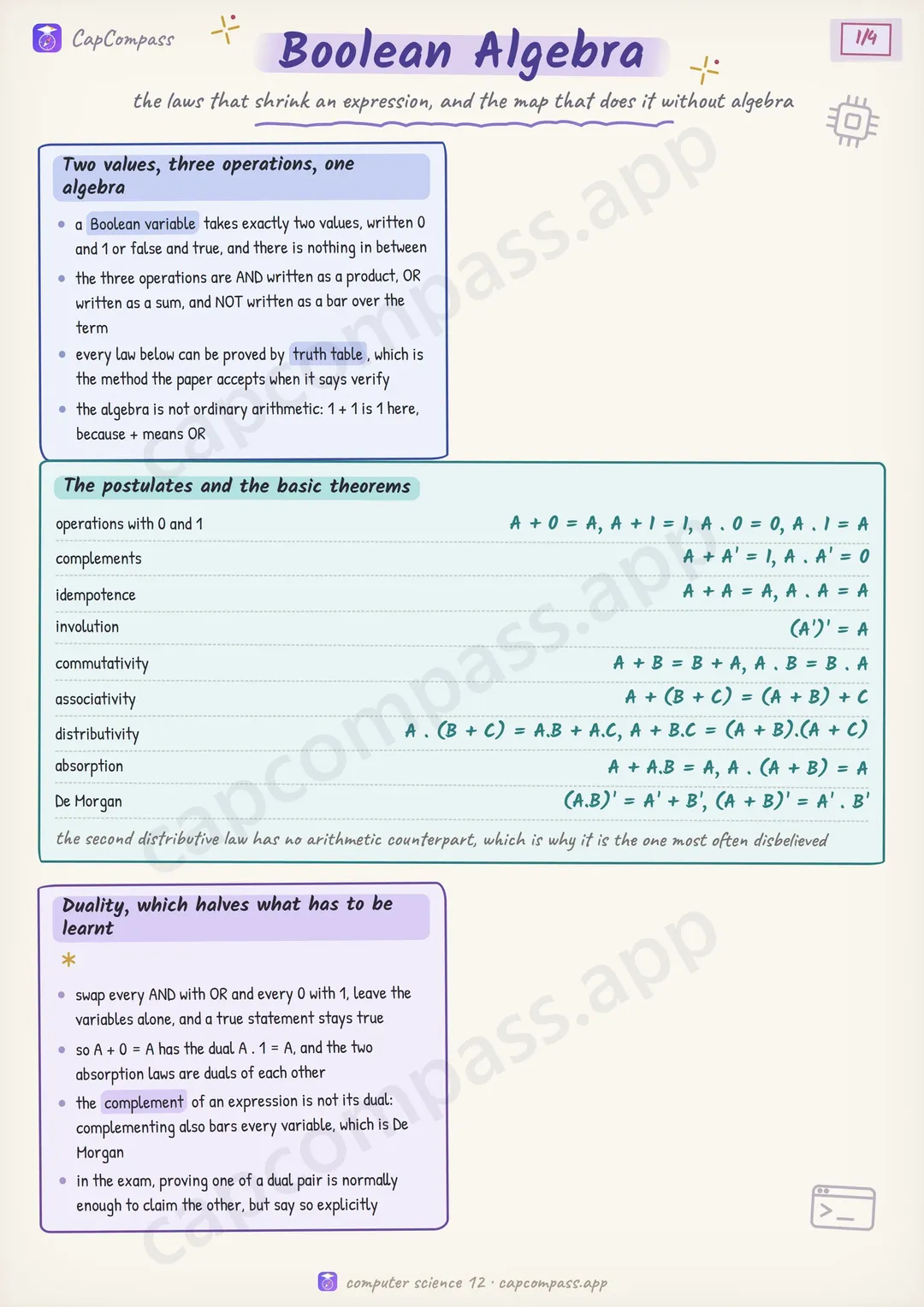

Page 1 as PDF
Boolean Algebra in one look
the laws that shrink an expression, and the map that does it without algebra
Two values, three operations, one algebra
- a Boolean variable takes exactly two values, written 0 and 1 or false and true, and there is nothing in between
- the three operations are AND written as a product, OR written as a sum, and NOT written as a bar over the term
- every law below can be proved by truth table, which is the method the paper accepts when it says verify
- the algebra is not ordinary arithmetic: 1 + 1 is 1 here, because + means OR
The postulates and the basic theorems
- operations with 0 and 1
A + 0 = A, A + 1 = 1, A . 0 = 0, A . 1 = A - complements
A + A' = 1, A . A' = 0 - idempotence
A + A = A, A . A = A - involution
(A')' = A - commutativity
A + B = B + A, A . B = B . A - associativity
A + (B + C) = (A + B) + C - distributivity
A . (B + C) = A.B + A.C, A + B.C = (A + B).(A + C) - absorption
A + A.B = A, A . (A + B) = A - De Morgan
(A.B)' = A' + B', (A + B)' = A' . B'
Duality, which halves what has to be learnt
- swap every AND with OR and every 0 with 1, leave the variables alone, and a true statement stays true
- so A + 0 = A has the dual A . 1 = A, and the two absorption laws are duals of each other
- the complement of an expression is not its dual: complementing also bars every variable, which is De Morgan
- in the exam, proving one of a dual pair is normally enough to claim the other, but say so explicitly
Page 1 of 4. The full sheet, all 4 pages, opens free in the app.
