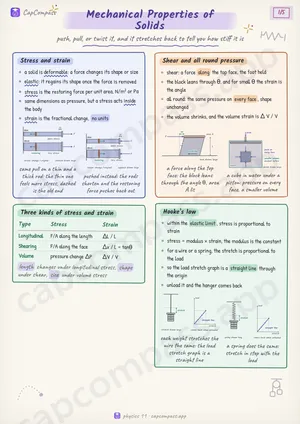

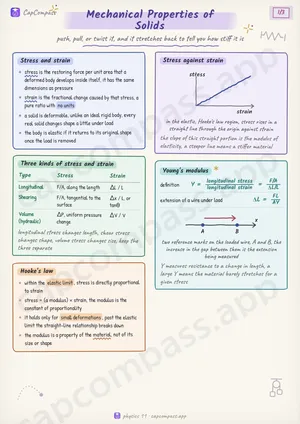

Mechanical Properties of Solids in one look
push, pull, or twist it, and it stretches back to tell you how stiff it is
Stress and strain
- a solid is deformable: a force changes its shape or size
- elastic: it regains its shape once the force is removed
- stress is the restoring force per unit area, N/m^2 or Pa
- same dimensions as pressure, but a stress acts inside the body
- strain is the fractional change, no units
Three kinds of stress and strain
| Type | Stress | Strain |
|---|---|---|
| Longitudinal | F/A along the length | Δ L / L |
| Shearing | F/A along the face | Δ x / L = tanθ |
| Volume | pressure change Δ P | Δ V / V |
Shear and all round pressure
- shear: a force along the top face, the foot held
- the block leans through θ, and for small θ the strain is the angle
- all round: the same pressure on every face, shape unchanged
- the volume shrinks, and the volume strain is Δ V / V
Hooke's law
- within the elastic limit, stress is proportional to strain
- stress = modulus × strain, the modulus is the constant
- for a wire or a spring, the stretch is proportional to the load
- so the load stretch graph is a straight line through the origin
- unload it and the hanger comes back
