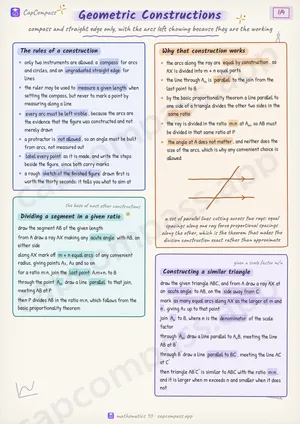

Page 1 as PDF
Geometric Constructions in one look
compass and straight edge only, with the arcs left showing because they are the working
The rules of a construction
- only two instruments are allowed: a compass for arcs and circles, and an ungraduated straight edge for lines
- the ruler may be used to measure a given length when setting the compass, but never to mark a point by measuring along a line
- every arc must be left visible, because the arcs are the evidence that the figure was constructed and not merely drawn
- a protractor is not allowed, so an angle must be built from arcs, not measured out
- label every point as it is made, and write the steps beside the figure, since both carry marks
- a rough sketch of the finished figure drawn first is worth the thirty seconds: it tells you what to aim at
Dividing a segment in a given ratio
- draw the segment AB of the given length
- from A draw a ray AX making any acute angle with AB, on either side
- along AX mark off m + n equal arcs of any convenient radius, giving points Aā, Aā and so on
- for a ratio m:n, join the last point Aām+nā to B
- through the point A_m draw a line parallel to that join, meeting AB at P
- then P divides AB in the ratio m:n, which follows from the basic proportionality theorem
Why that construction works
- the arcs along the ray are equal by construction, so AX is divided into m + n equal parts
- the line through A_m is parallel to the join from the last point to B
- by the basic proportionality theorem a line parallel to one side of a triangle divides the other two sides in the same ratio
- the ray is divided in the ratio m:n at A_m, so AB must be divided in that same ratio at P
- the angle at A does not matter, and neither does the size of the arcs, which is why any convenient choice is allowed
Constructing a similar triangle
- draw the given triangle ABC, and from A draw a ray AX at an acute angle to AB, on the side away from C
- mark as many equal arcs along AX as the larger of m and n, giving Aā up to that point
- join A_n to B, where n is the denominator of the scale factor
- through A_m draw a line parallel to A_nB, meeting the line AB at B'
- through B' draw a line parallel to BC, meeting the line AC at C'
- then triangle AB'C' is similar to ABC with the ratio m:n, and it is larger when m exceeds n and smaller when it does not
Page 1 of 4. The full sheet, all 4 pages, opens free in the app.
