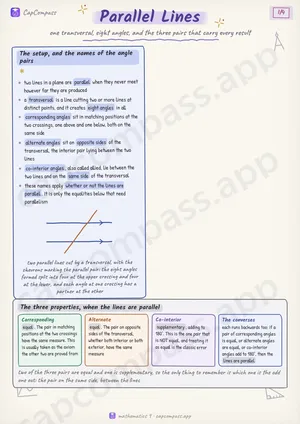

Page 1 as PDF
Parallel Lines in one look
one transversal, eight angles, and the three pairs that carry every result
The setup, and the names of the angle pairs
- two lines in a plane are parallel when they never meet however far they are produced
- a transversal is a line cutting two or more lines at distinct points, and it creates eight angles in all
- corresponding angles sit in matching positions at the two crossings, one above and one below, both on the same side
- alternate angles sit on opposite sides of the transversal, the interior pair lying between the two lines
- co-interior angles, also called allied, lie between the two lines and on the same side of the transversal
- these names apply whether or not the lines are parallel. It is only the equalities below that need parallelism
The three properties, when the lines are parallel
- Corresponding: equal. The pair in matching positions at the two crossings have the same measure. This is usually taken as the axiom the other two are proved from
- Alternate: equal. The pair on opposite sides of the transversal, whether both interior or both exterior, have the same measure
- Co-interior: supplementary, adding to 180°. This is the one pair that is NOT equal, and treating it as equal is the classic error
- The converses: each runs backwards too: if a pair of corresponding angles is equal, or alternate angles are equal, or co-interior angles add to 180°, then the lines are parallel
