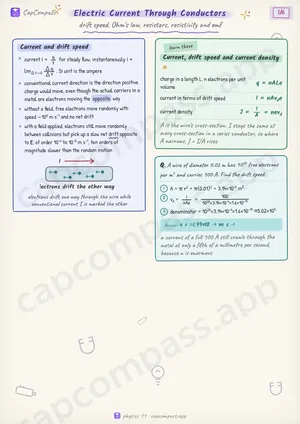

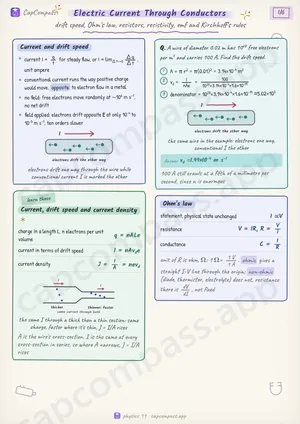

Electric Current Through Conductors in one look
drift speed, Ohm's law, resistors, resistivity, emf and Kirchhoff's rules
Current and drift speed
- current I = q/t for steady flow, or I = lim_Δ tto0Δ q/Δ t, unit ampere
- conventional current runs the way positive charge would move, opposite to electron flow in a metal
- no field: free electrons move randomly at sim10^6 m s^-1, no net drift
- field applied: electrons drift opposite E at only 10^-4 to 10^-5 m s^-1, ten orders slower
Current, drift speed and current density
- charge in a length L, n electrons per unit volume
q = nALe - current in terms of drift speed
I = nAv_de - current density
J = I/A = nev_d
Q. A wire of diameter 0.02 m has 10^28 free electrons per m^3 and carries 100 A. Find the drift speed.
- A = π r^2 = π(0.01)^2 = 3.14×10^-4 m^2
- v_d = I/nAe = 100/10^28×3.14×10^-4×1.6×10^-19
- denominator = 10^28×3.14×10^-4×1.6×10^-19 ≈ 5.02×10^5
Answer: v_d ≈ 1.99×10^-4 m s^-1
Ohm's law
- statement, physical state unchanged
I ∝ V - resistance
V = IR, R = V/I - conductance
C = 1/R
