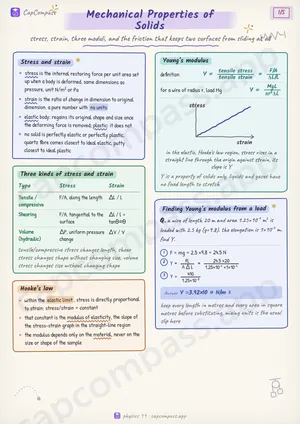

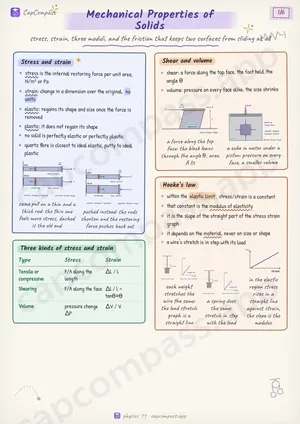

Page 1 as PDF
Mechanical Properties of Solids in one look
stress, strain, three moduli, and the friction that keeps two surfaces from sliding at all
Stress and strain
- stress is the internal restoring force per unit area, N/m^2 or Pa
- strain: change in a dimension over the original, no units
- elastic: regains its shape and size once the force is removed
- plastic: it does not regain its shape
- no solid is perfectly elastic or perfectly plastic
- quartz fibre is closest to ideal elastic, putty to ideal plastic
Three kinds of stress and strain
| Type | Stress | Strain |
|---|---|---|
| Tensile or compressive | F/A along the length | Δ L / L |
| Shearing | F/A along the face | Δ l / l = tanθ ≈ θ |
| Volume | pressure change Δ P | Δ V / V |
Shear and volume
- shear: a force along the top face, the foot held, the angle θ
- volume: pressure on every face alike, the size shrinks
Hooke's law
- within the elastic limit, stress/strain is a constant
- that constant is the modulus of elasticity
- it is the slope of the straight part of the stress strain graph
- it depends on the material, never on size or shape
- a wire's stretch is in step with its load
