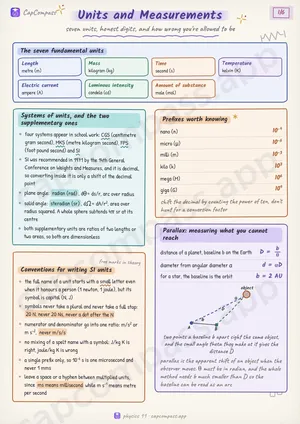

Page 1 as PDF
Units and Measurements in one look
seven units, honest digits, and how wrong you're allowed to be
The seven fundamental units
- Length: metre (m)
- Mass: kilogram (kg)
- Time: second (s)
- Temperature: kelvin (K)
- Electric current: ampere (A)
- Luminous intensity: candela (cd)
- Amount of substance: mole (mol)
A physical quantity
- a physical quantity = a number × a unit: without its unit the number means nothing
- change the unit and the number changes the other way: n_1u_1 = n_2u_2
Prefixes
- a prefix is a power of ten on the unit: shift the decimal point
The two supplementary units
- plane angle: radian (rad), dθ = ds/r, arc over radius
- solid angle: steradian (sr), dΩ = dA/r^2; a whole sphere subtends 4π sr
- both are ratios of like quantities, so both are dimensionless
Conventions for writing SI units
- full name starts small even for a person (newton, joule); the symbol is capital (N, J)
- no plural, no full stop: 20 N, never 20 Ns or 20 N.
- one ratio: m/s^2 or m s^-2, never m/s/s
- never mix a name with a symbol: J/kg K, not joule/kg K
- one prefix only: 10^-6 s is a microsecond, never 1 mms
- a space between multiplied units: ms is a millisecond, m s^-1 a speed
Page 1 of 7. The full sheet, all 7 pages, opens free in the app.
What this Units and Measurements sheet covers
- SI units
- The seven fundamental units
- Length
- Mass
- Time
- Temperature
- Electric current
- Luminous intensity
- Amount of substance
- A physical quantity
- Prefixes
- The two supplementary units
- Conventions for writing SI units
- Units for the very large and the very small
- 1 astronomical unit (AU)
- 1 light year
- 1 parsec (pc)
- 1 fermi (fm)
- 1 angstrom
- 1 atomic mass unit (u)
- How the metre, kilogram and second are fixed now
- measurement of length
- large distances
- Parallax: measuring what you cannot reach
- distance of a far object, basis b, parallax angle θ in radian
- diameter from its angular diameter α
- for a star, the basis is the Earth's orbit
- A sense of scale, order of magnitude
- dimensional analysis
- Dimensions of common quantities
- force
- work, energy
- power
- pressure, stress
- density
- momentum, impulse
- When all three powers are zero
- Principle of homogeneity
- Three jobs dimensional analysis does
- Where dimensional analysis fails
- Accuracy vs precision
- Accuracy
- Precision
- error analysis
- errors in measurement
- Systematic and random errors
- Systematic
- Random
- Errors, defined
- mean, the most probable value
- absolute error in one reading
- mean absolute error
- relative error; × 100\% for the percentage error
- Combining errors
- sum or difference, Z = A ± B
- product or quotient, Z = AB or A/B
- a power, Z = A^pB^q/C^r
- Products and powers
- Least count and vernier callipers
- 10 VSD = 9 MSD: 0.1 mm; 20 VSD = 19 MSD: 0.05 mm
- main scale, then the line that coincides
- Screw gauge
- one turn's pitch over the circular divisions
- pitch scale, then the index line
- Significant figures, counting rules
- Significant figures in calculations
- Traps that cost marks
- Tricks that save time
