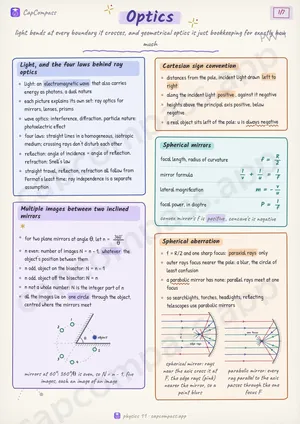

Page 1 as PDF

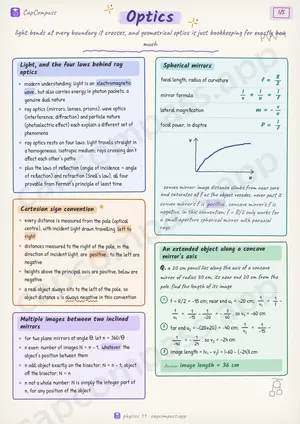

Optics in one look
light bends at every boundary it crosses, and geometrical optics is just bookkeeping for exactly how much
Light, and the four laws behind ray optics
- light: an electromagnetic wave that also carries energy as photons, a dual nature
- each picture explains its own set: ray optics for mirrors, lenses, prisms
- wave optics: interference, diffraction. particle nature: photoelectric effect
- four laws: straight lines in a homogeneous, isotropic medium; crossing rays don't disturb each other
- reflection: angle of incidence = angle of reflection. refraction: Snell's law
- straight travel, reflection, refraction all follow from Fermat's least time; ray independence is a separate assumption
Multiple images between two inclined mirrors
- for two plane mirrors at angle θ, let n = 360°/θ
- n even: number of images N = n - 1, whatever the object's position between them
- n odd, object on the bisector: N = n - 1
- n odd, object off the bisector: N = n
- n not a whole number: N is the integer part of n
- all the images lie on one circle through the object, centred where the mirrors meet
Cartesian sign convention
- distances from the pole, incident light drawn left to right
- along the incident light positive, against it negative
- heights above the principal axis positive, below negative
- a real object sits left of the pole: u is always negative
Spherical mirrors
- focal length, radius of curvature
f = R/2 - mirror formula
1/v + 1/u = 1/f - lateral magnification
m = -v/u - focal power, in dioptre
P = 1/f
Spherical aberration
- f = R/2 and one sharp focus: paraxial rays only
- outer rays focus nearer the pole: a blur, the circle of least confusion
- a parabolic mirror has none: parallel rays meet at one focus
- so searchlights, torches, headlights, reflecting telescopes use parabolic mirrors
Page 1 of 7. The full sheet, all 7 pages, opens free in the app.
What this Optics sheet covers
- Light, and the four laws behind ray optics
- Multiple images between two inclined mirrors
- Cartesian sign convention
- Spherical mirrors
- focal length, radius of curvature
- mirror formula
- lateral magnification
- focal power, in dioptre
- Spherical aberration
- Mirror ray diagrams, drawn from the mirror formula
- Concave mirror, object position and image
- Refractive index, and real vs apparent depth
- absolute refractive index
- relative refractive index, medium 2 with respect to 1
- seen from above through a plane surface
- Critical angle and refraction at a spherical surface
- critical angle, denser medium of relative index n
- one spherical surface, media n_1 then n_2, radius R
- Total internal reflection
- Optical fibre
- Mirage
- Where total internal reflection is put to work
- Prism binoculars
- Periscope
- Diamond
- Thin lens formula and lensmaker's equation
- thin lens formula
- lensmaker's equation
- lenses in contact
- Prism formula, thin-prism deviation, dispersive power
- prism angle A, minimum deviation δ_m: i=e, r_1=r_2=A/2
- thin prism (A under 10 degrees), deviation is constant
- dispersive power, extreme colours violet and red, yellow as mean
- Primary vs secondary rainbow
- Primary
- Secondary
- Two prisms: crown and flint
- thin prism: angular dispersion, violet to red
- no dispersion, flint turned over
- no deviation of the mean colour
- Lens aberrations, and the achromatic fix
- Magnifying power, the key idea
- Simple and compound microscope
- simple microscope, image at infinity (minimum M)
- simple microscope, image at D (maximum M)
- compound microscope, normal adjustment
- Astronomical telescope, normal adjustment
- magnifying power
- length of the telescope
- Symbols
- Combinations: lenses, lens and mirror, silvered lens
- Traps that cost marks
- Tricks that save time
