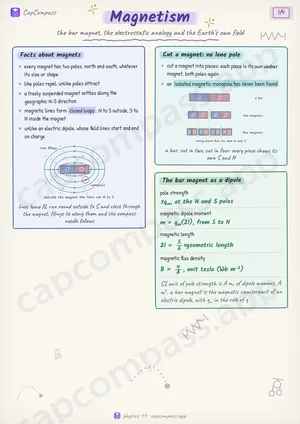

A 4-page visual revision sheet for Magnetism, written for Class 11 Maharashtra HSC Physics. Formulas, diagrams and the traps that cost marks, laid out to be read the night before rather than the term before. Free, and it opens inside CapCompass.
Page 1 as PDF
Magnetism in one look
the bar magnet, the electrostatic analogy and the Earth's own field
Facts about magnets
- every magnet has two poles, north and south, whatever its size or shape
- like poles repel, unlike poles attract
- a freely suspended magnet settles along the geographic N-S direction
- magnetic lines form closed loops: N to S outside, S to N inside the magnet
- unlike an electric dipole, whose field lines start and end on charge
Cut a magnet: no lone pole
- cut a magnet into pieces: each piece is its own weaker magnet, both poles again
- an isolated magnetic monopole has never been found
The bar magnet as a dipole
- pole strength
± q_m, at the N and S poles - magnetic dipole moment
m = q_m(2l), from S to N - magnetic length
2l = 5/6timesgeometric length - magnetic flux density
B = φ/A, unit tesla (Wb m^-2)
