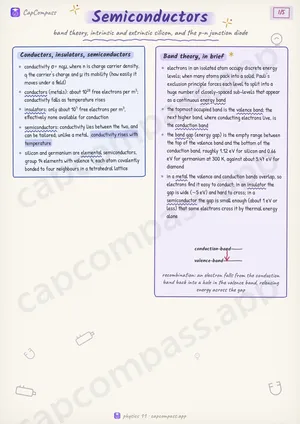

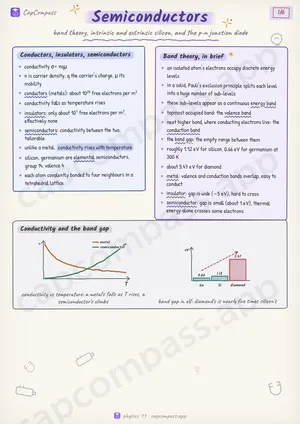

Semiconductors in one look
band theory, intrinsic and extrinsic silicon, and the p-n junction diode
Conductors, insulators, semiconductors
- conductivity σ = nqμ
- n is carrier density, q the carrier's charge, μ its mobility
- conductors (metals): about 10^28 free electrons per m^3
- conductivity falls as temperature rises
- insulators: only about 10^7 free electrons per m^3, effectively none
- semiconductors: conductivity between the two, tailorable
- unlike a metal, conductivity rises with temperature
- silicon, germanium are elemental semiconductors, group 14, valence 4
- each atom covalently bonded to four neighbours in a tetrahedral lattice
Band theory, in brief
- an isolated atom's electrons occupy discrete energy levels
- in a solid, Pauli's exclusion principle splits each level into a huge number of sub-levels
- these sub-levels appear as a continuous energy band
- topmost occupied band: the valence band
- next higher band, where conducting electrons live: the conduction band
- the band gap: the empty range between them
- roughly 1.12 eV for silicon, 0.66 eV for germanium at 300 K
- about 5.47 eV for diamond
- metal: valence and conduction bands overlap, easy to conduct
- insulator: gap is wide (sim5 eV), hard to cross
- semiconductor: gap is small (about 1 eV), thermal energy alone crosses some electrons
Page 1 of 6. The full sheet, all 6 pages, opens free in the app.
What this Semiconductors sheet covers
- Conductors, insulators, semiconductors
- Band theory, in brief
- Conductivity and the band gap
- Metal, semiconductor, insulator
- Intrinsic semiconductors
- Heat makes pairs
- A field moves them
- Doping and extrinsic semiconductors
- n-type vs p-type
- n-type
- p-type
- The p-n junction
- Diffusion and the depletion region
- The potential barrier
- Forward vs reverse bias
- Forward bias
- Reverse bias
- The junction diode
- static (DC) resistance
- dynamic (AC) resistance
- The diode as a rectifier
- Rectifiers at work
- Other junction devices
- Symbols
- Traps that cost marks
- Tricks that save time
