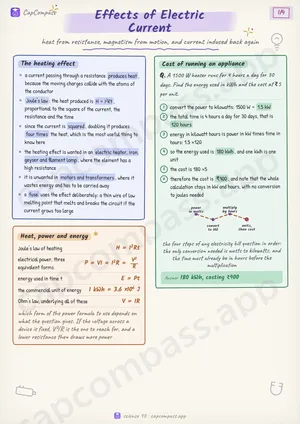

Effects of Electric Current in one look
heat from resistance, magnetism from motion, and current induced back again
The heating effect
- a current passing through a resistance produces heat, because the moving charges collide with the atoms of the conductor
- Joule's law: the heat produced is H = I^2Rt, proportional to the square of the current, the resistance and the time
- since the current is squared, doubling it produces four times the heat, which is the most useful thing to know here
- the heating effect is wanted in an electric heater, iron, geyser and filament lamp, where the element has a high resistance
- it is unwanted in motors and transformers, where it wastes energy and has to be carried away
- a fuse uses the effect deliberately: a thin wire of low melting point that melts and breaks the circuit if the current grows too large
Heat, power and energy
- Joule's law of heating
H = I^2Rt - electrical power, three equivalent forms
P = VI = I^2R = V^2/R - energy used in time t
E = Pt - the commercial unit of energy
1 kWh = 3.6 × 10^6 J - Ohm's law, underlying all of these
V = IR
Cost of running an appliance
Q. A 1500 W heater runs for 4 hours a day for 30 days. Find the energy used in kWh and the cost at ₹5 per unit.
- convert the power to kilowatts: 1500 W = 1.5 kW
- the total time is 4 hours a day for 30 days, that is 120 hours
- energy in kilowatt hours is power in kW times time in hours: 1.5 × 120
- so the energy used is 180 kWh, and one kWh is one unit
- the cost is 180 × 5
- therefore the cost is ₹900, and note that the whole calculation stays in kW and hours, with no conversion to joules needed
Answer: 180 kWh, costing ₹900
