Current Electricity — Class 12 CBSE Physics revision notes
A 7-page visual revision sheet for Current Electricity, written for Class 12 CBSE Physics. Formulas, diagrams and the traps that cost marks, laid out to be read the night before rather than the term before. Free, and it opens inside CapCompass.
Page 1 as PDF

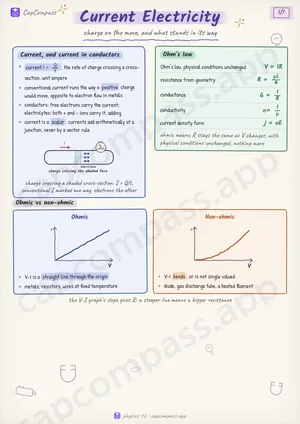

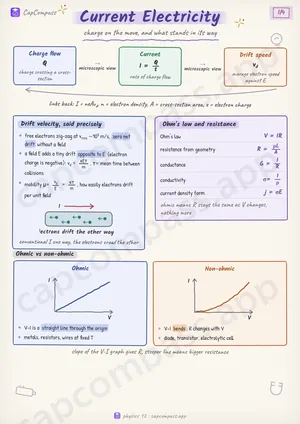

Current Electricity in one look
charge on the move, and what stands in its way
Current, and current in conductors
- current I = Q/t, the rate of charge crossing a cross-section, unit ampere
- conventional current runs the way a positive charge would move, opposite to electron flow in metals
- conductors: free electrons carry the current; electrolytes: both + and − ions carry it, adding
- current is a scalar: currents add arithmetically at a junction, never by a vector rule
Ohm's law
- Ohm's law, physical conditions unchanged
V = IR - resistance from geometry
R = ρ L/A - conductance
G = 1/R - conductivity
σ = 1/ρ - current density form
j = σ E
Ohmic vs non-ohmic
- V-I is a straight line through the origin
- metals, resistors, wires at fixed temperature
- V-I bends, or is not single valued
- diode, gas discharge tube, a heated filament
Page 1 of 7. The full sheet, all 7 pages, opens free in the app.
