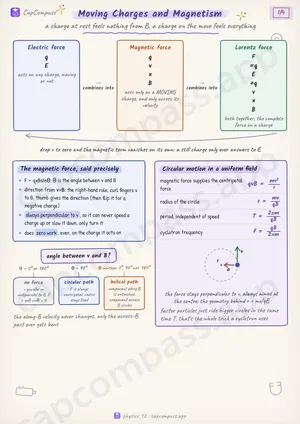

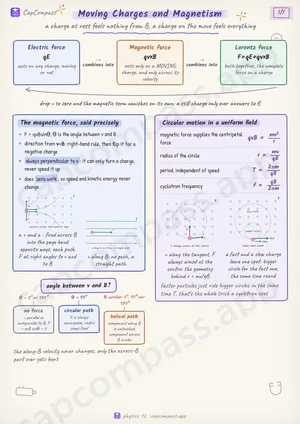

Moving Charges and Magnetism in one look
a charge at rest feels nothing from B, a charge on the move feels everything
- Electric force: acts on any charge, moving or not
- Magnetic force: acts only on a MOVING charge, and only across its velocity
- Lorentz force: both together, the complete force on a charge
The magnetic force, said precisely
- F = qvBsinθ, θ is the angle between v and B
- direction from vtimesB: right-hand rule, then flip it for a negative charge
- always perpendicular to v: it can only turn a charge, never speed it up
- does zero work, so speed and kinetic energy never change
angle between v and B?
- θ = 0° or 180° — no force: v parallel or antiparallel to B, F = qvB sinθ = 0
- θ = 90° — circular path: F is always centripetal, radius stays fixed
- θ neither 0°, 90° nor 180° — helical path: component along B is untouched, component across B circles
Circular motion in a uniform field
- magnetic force supplies the centripetal force
qvB = mv^2/r - radius of the circle
r = mv/qB - period, independent of speed
T = 2π m/qB - cyclotron frequency
f = qB/2π m
Page 1 of 7. The full sheet, all 7 pages, opens free in the app.
