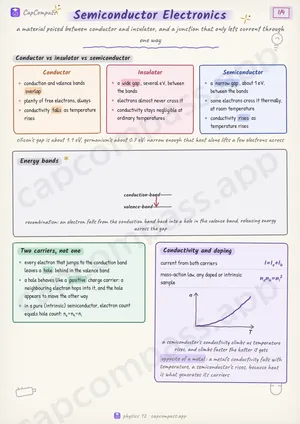

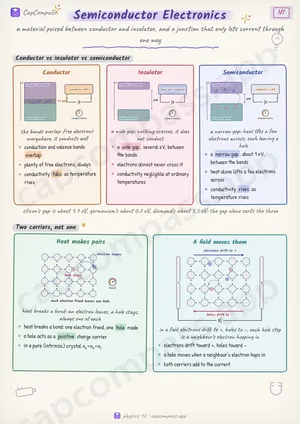

Semiconductor Electronics in one look
a material poised between conductor and insulator, and a junction that only lets current through one way
Conductor vs insulator vs semiconductor
- conduction and valence bands overlap
- plenty of free electrons, always
- conductivity falls as temperature rises
- a wide gap, several eV, between the bands
- electrons almost never cross it
- conductivity negligible at ordinary temperatures
- a narrow gap, about 1 eV, between the bands
- heat alone lifts a few electrons across
- conductivity rises as temperature rises
Two carriers, not one
- heat breaks a bond: one electron freed, one hole made
- a hole acts as a positive charge carrier
- in a pure (intrinsic) crystal n_e=n_h=n_i
- electrons drift toward +, holes toward −
- a hole moves when a neighbour's electron hops in
- both carriers add to the current
