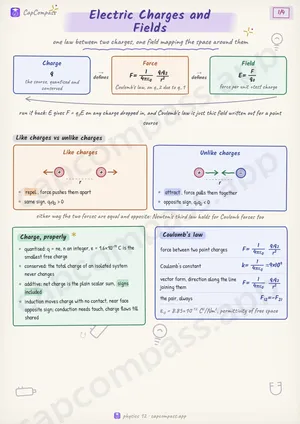

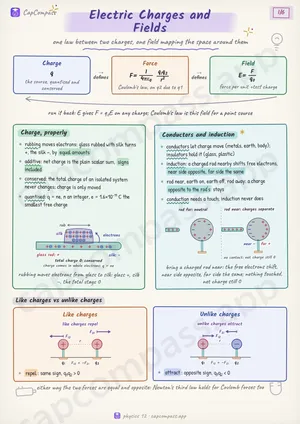

Electric Charges and Fields in one look
one law between two charges, one field mapping the space around them
- Charge: the source, quantised and conserved
- Force: Coulomb's law, on q2 due to q1
- Field: force per unit +test charge
Charge, properly
- rubbing moves electrons: glass rubbed with silk turns +, the silk −, by equal amounts
- additive: net charge is the plain scalar sum, signs included
- conserved: the total charge of an isolated system never changes; charge is only moved
- quantised: q = ne, n an integer, e = 1.6×10^-19 C the smallest free charge
Conductors and induction
- conductors let charge move (metals, earth, body); insulators hold it (glass, plastic)
- induction: a charged rod nearby shifts free electrons, near side opposite, far side the same
- rod near, earth on, earth off, rod away: a charge opposite to the rod's stays
- conduction needs a touch; induction never does
Like charges vs unlike charges
- repel: same sign, q_1q_2 > 0
- attract: opposite sign, q_1q_2 < 0
