Electromagnetic Waves in one look
a changing E makes a B, a changing B makes an E, and the pair carries itself forward
- Changing E: an electric field that varies with time
- Displacement current: Maxwell's term: it makes a B, just as a conduction current does
- Self-sustaining wave: each one's change regenerates the other

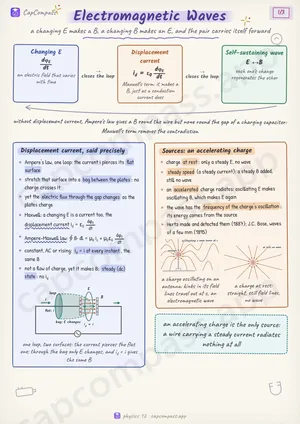

Displacement current, said precisely
- Ampere's law, one loop: the current i pierces its flat surface
- stretch that surface into a bag between the plates: no charge crosses it
- yet the electric flux through the gap changes as the plates charge
- Maxwell: a changing E is a current too, the displacement current i_d = ε_0dφ_E/dt
- Ampere-Maxwell law: oint B· dl = μ_0 i_c + μ_0ε_0dφ_E/dt
- constant, AC or rising: i_d = i at every instant, the same B
- not a flow of charge, yet it makes B; steady (dc) state: no i_d
Sources: an accelerating charge
- charge at rest: only a steady E, no wave
- steady speed (a steady current): a steady B added, still no wave
- an accelerated charge radiates: oscillating E makes oscillating B, which makes E again
- the wave has the frequency of the charge's oscillation; its energy comes from the source
- Hertz made and detected them (1887); J.C. Bose, waves of a few mm (1895)
