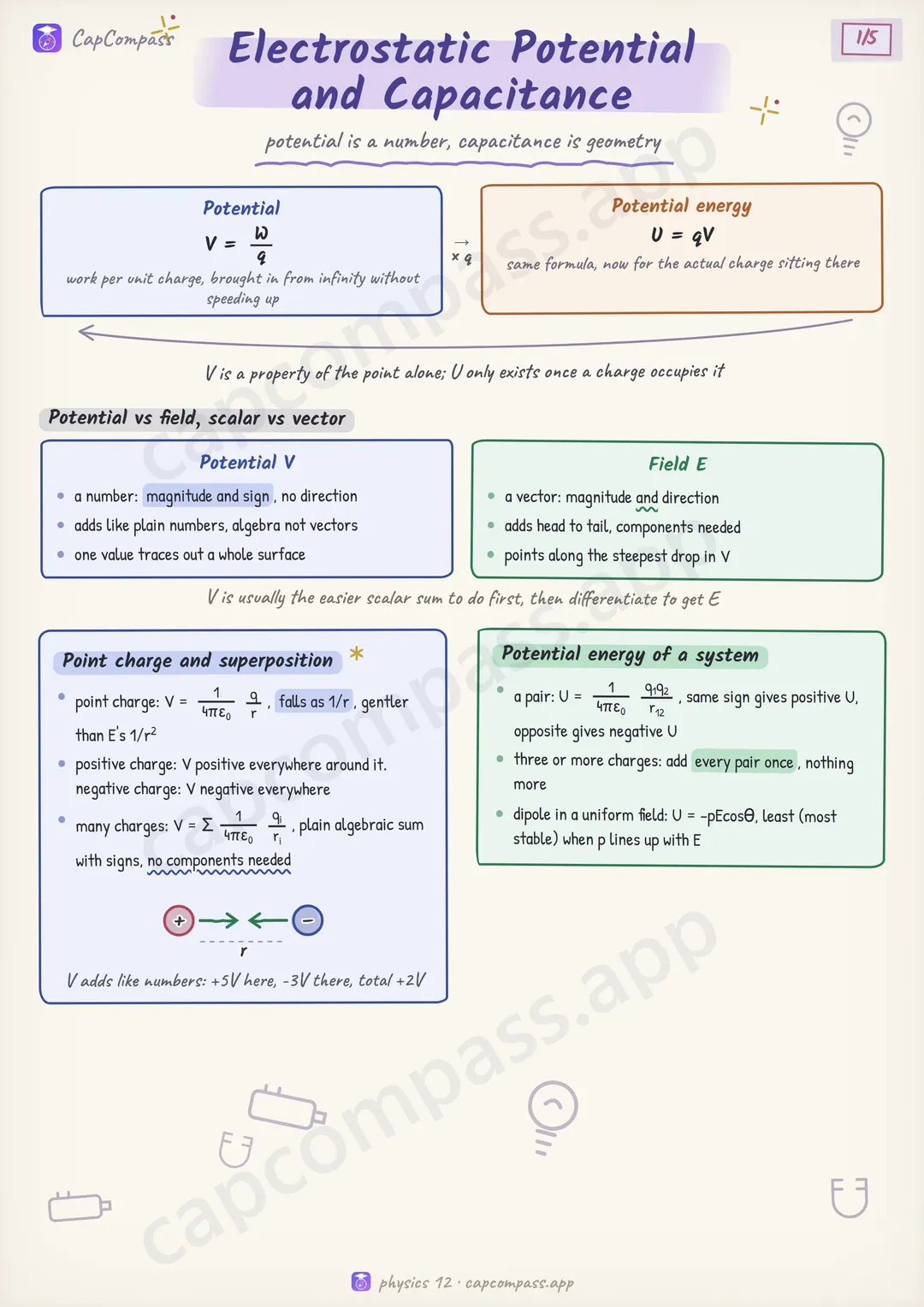

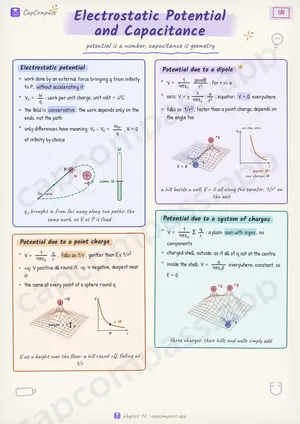

Electrostatic Potential and Capacitance in one look
potential is a number, capacitance is geometry
Electrostatic potential
- work done by an external force bringing q from infinity to P, without accelerating it
- V_P = W/q: work per unit charge, unit volt = J/C
- the field is conservative: the work depends only on the ends, not the path
- only differences have meaning: V_P - V_R = W_RP/q, V = 0 at infinity by choice
Potential due to a point charge
- V = 1/4πε_0q/r, falls as 1/r, gentler than E's 1/r^2
- +q: V positive all round it. -q: V negative, deepest near it
- the same at every point of a sphere round q
Potential due to a dipole
- V = 1/4πε_0pcosθ/r^2, for r >> a
- axis: V = ±1/4πε_0p/r^2. equator: V = 0 everywhere
- falls as 1/r^2, faster than a point charge; depends on the angle too
Potential due to a system of charges
- V = 1/4πε_0Σ q_i/r_i: a plain sum with signs, no components
- charged shell, outside: as if all of q sat at the centre
- inside the shell: V = q/4πε_0R everywhere, constant, so E = 0
Page 1 of 6. The full sheet, all 6 pages, opens free in the app.
What this Electrostatic Potential and Capacitance sheet covers
- Electrostatic potential
- Potential due to a point charge
- Potential due to a dipole
- Potential due to a system of charges
- Equipotential surfaces
- Field from potential
- E is minus the potential gradient
- in a uniform field, across a gap d
- Where the minus sign comes from
- Potential energy of a system of charges
- Self energy of a charged sphere
- conducting shell, charge Q radius R
- uniformly charged solid sphere
- Potential energy in an external field
- Electrostatics of conductors
- Dielectrics and polarisation
- Capacitors and capacitance
- definition
- parallel plate, vacuum
- gap filled with dielectric K
- unit, farad
- Sphere and cylinder capacitors
- isolated sphere, radius R
- spherical, inner a outer b
- cylindrical, length L
- Sliding in a dielectric
- Battery still connected
- Battery disconnected
- A slab only part-way in
- dielectric slab of thickness t
- metal slab of thickness t (K → ∞)
- Series vs parallel
- Series
- Parallel
- Limits worth checking
- Energy stored in a capacitor
- work done charging it
- energy density in the field
- force between the plates
- Two capacitors sharing charge
- joined plus to plus, common V
- energy lost as heat and spark
- Symbols
- Traps that cost marks
- Tricks that save time
