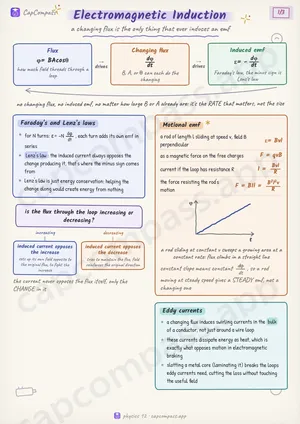

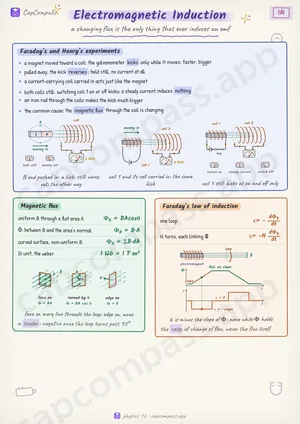

Electromagnetic Induction in one look
a changing flux is the only thing that ever induces an emf
Faraday's and Henry's experiments
- a magnet moved toward a coil: the galvanometer kicks only while it moves; faster, bigger
- pulled away, the kick reverses; held still, no current at all
- a current-carrying coil carried in acts just like the magnet
- both coils still: switching coil 1 on or off kicks; a steady current induces nothing
- an iron rod through the coils makes the kick much bigger
- the common cause: the magnetic flux through the coil is changing
Magnetic flux
- uniform B through a flat area A
Φ_B = BAcosθ - θ: between B and the area's normal
Φ_B = BcdotA - curved surface, non-uniform B
Φ_B = sumB· dA - SI unit, the weber
1 Wb = 1 T m^2
Faraday's law of induction
- one loop
ε = -dΦ_B/dt - N turns, each linking Φ
ε = -NdΦ_B/dt
