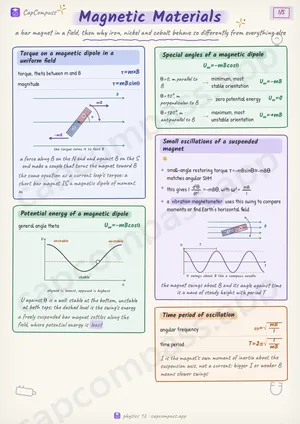

Magnetic Materials in one look
a bar magnet in a field, then why iron, nickel and cobalt behave so differently from everything else
Torque on a magnetic dipole in a uniform field
- torque, theta between m and B
τ=mtimesB - magnitude
τ=mBsinθ
Potential energy of a magnetic dipole
- general angle theta
U_m=-mBcosθ
Special angles of a magnetic dipole
- θ=0, m parallel to B — minimum, most stable orientation
- θ=90°, m perpendicular to B — zero potential energy
- θ=180°, m antiparallel to B — maximum, most unstable orientation
Small oscillations of a suspended magnet
- small-angle restoring torque τ=-mBsinθ≈-mBθ matches angular SHM
- this gives Id^2θ/dt^2=-mBθ, with ω^2=mB/I
- a vibration magnetometer uses this swing to compare moments or find Earth's horizontal field
Time period of oscillation
- angular frequency
ω=√mB/I - time period
T=2π√I/mB
Page 1 of 5. The full sheet, all 5 pages, opens free in the app.
What this Magnetic Materials sheet covers
- torque on a magnetic dipole
- Torque on a magnetic dipole in a uniform field
- torque, theta between m and B
- magnitude
- potential energy of a dipole in a magnetic field
- Potential energy of a magnetic dipole
- general angle theta
- Special angles of a magnetic dipole
- oscillations of a bar magnet
- vibration magnetometer
- Small oscillations of a suspended magnet
- time period of a bar magnet
- Time period of oscillation
- angular frequency
- time period
- origin of magnetism
- Where magnetism in materials comes from
- Poles of a current loop
- magnetization
- magnetic moment per unit volume
- field inside, from the winding and the material
- magnetic susceptibility
- relative permeability
- Magnetic intensity, susceptibility and permeability
- magnetic intensity
- susceptibility, when M is proportional to H
- permeability, and B in terms of H
- Dia, para and ferro in one look
- Diamagnetic
- Paramagnetic
- Ferromagnetic
- diamagnetism
- diamagnetic materials
- paramagnetism
- paramagnetic materials
- curie's law
- magnetization of a paramagnetic material
- susceptibility
- Diamagnetic vs paramagnetic
- ferromagnetism
- domain theory
- Ferromagnetism and the domain theory
- curie temperature
- Curie-Weiss law, above the Curie temperature T_C
- hysteresis
- hysteresis loop
- Soft vs hard ferromagnetic material
- Soft (soft iron)
- Hard (steel, alnico)
- permanent magnet
- electromagnet
- Permanent magnets and electromagnets
- magnetic shielding
- Symbols
- Traps that cost marks
- Tricks that save time
