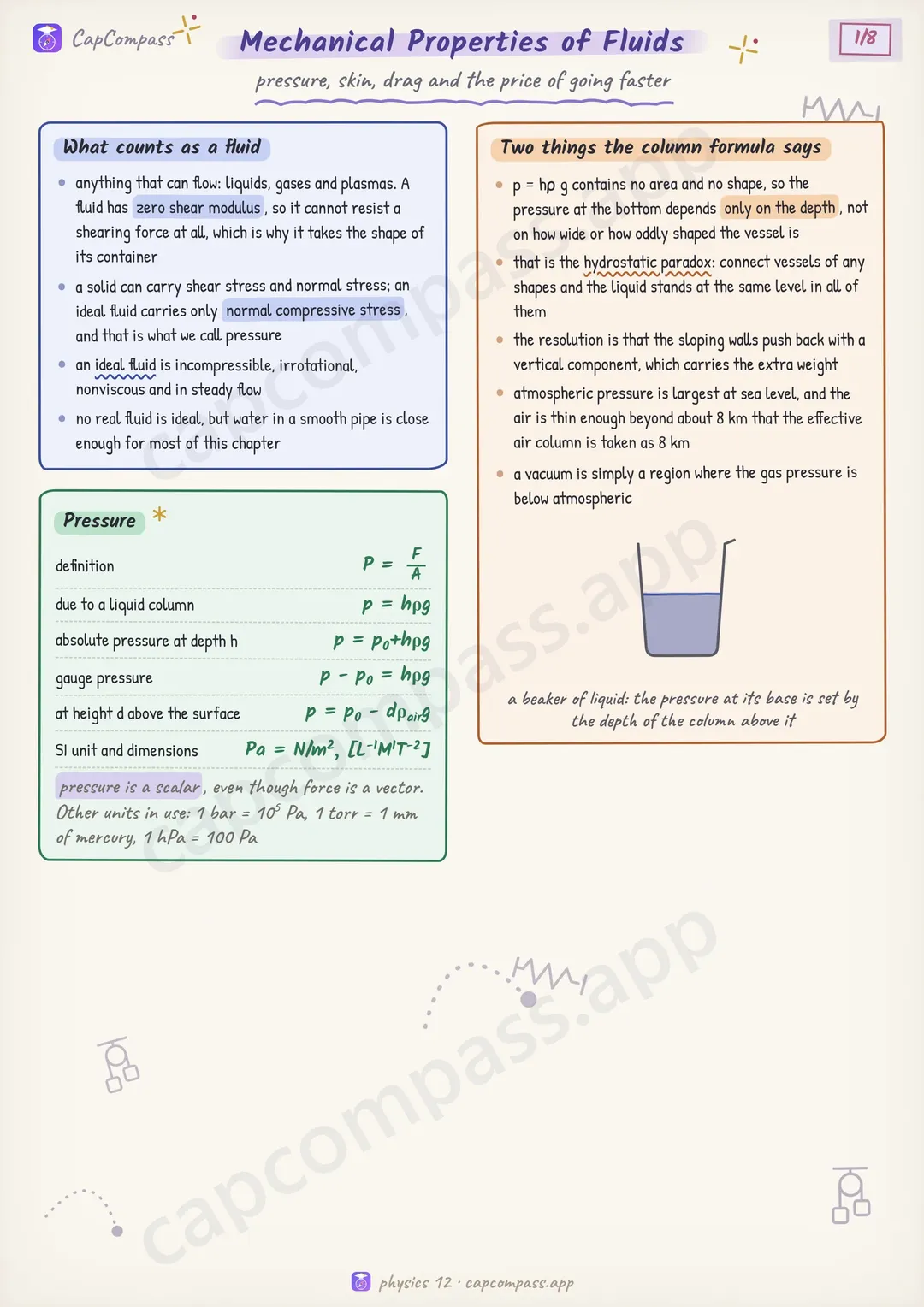

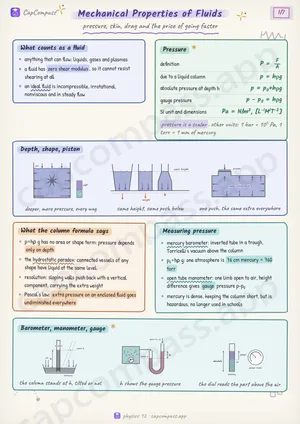

Page 1 as PDF
Mechanical Properties of Fluids in one look
pressure, skin, drag and the price of going faster
What counts as a fluid
- anything that can flow: liquids, gases and plasmas
- a fluid has zero shear modulus, so it cannot resist shearing at all
- an ideal fluid is incompressible, irrotational, nonviscous and in steady flow
Pressure
- definition
P = F/A - due to a liquid column
p = hρ g - absolute pressure at depth h
p = p_0+hρ g - gauge pressure
p - p_0 = hρ g - SI unit and dimensions
Pa = N/m^2, [L^-1M^1T^-2]
What the column formula says
- p=hρ g has no area or shape term: pressure depends only on depth
- the hydrostatic paradox: connected vessels of any shape have liquid at the same level
- resolution: sloping walls push back with a vertical component, carrying the extra weight
- Pascal's law: extra pressure on an enclosed fluid goes undiminished everywhere
Measuring pressure
- mercury barometer: inverted tube in a trough, Torricelli's vacuum above the column
- p_0=hρ g: one atmosphere is 76 cm mercury = 760 torr
- open tube manometer: one limb open to air, height difference gives gauge pressure p-p_0
- mercury is dense, keeping the column short, but is hazardous, no longer used in schools
Page 1 of 7. The full sheet, all 7 pages, opens free in the app.
What this Mechanical Properties of Fluids sheet covers
- What counts as a fluid
- pressure
- definition
- due to a liquid column
- absolute pressure at depth h
- gauge pressure
- SI unit and dimensions
- Depth, shape, piston
- What the column formula says
- Measuring pressure
- Barometer, manometer, gauge
- Lift and brake
- surface tension
- Surface tension, the molecular picture
- Surface tension and surface energy
- work to make new surface
- force on a film with two surfaces
- water at 20 ° C
- mercury at 20 ° C
- Molecules, film, energy
- What changes surface tension
- Impurity
- Temperature
- Angle of contact
- Excess pressure in a drop and a bubble
- liquid drop, one surface
- soap bubble, two surfaces
- air bubble inside a liquid
- Water, mercury, detergent
- Drop, bubble, joined bubbles
- capillarity
- capillary rise
- Capillary action
- radius of the meniscus
- rise or fall
- surface tension from a rise
- weight of the raised column
- upward pull of the surface
- Streamline flow and turbulent flow
- Streamline, or laminar
- Turbulent
- Rise, fall, radius
- Streamlines, continuity, turbulence
- continuity
- Equation of continuity
- mass in equals mass out
- so for an incompressible fluid
- in one line
- Critical velocity and Reynolds number
- critical velocity
- Reynolds number
- Reading the Reynolds number
- viscosity
- coefficient of viscosity
- Layers, pipe, temperature
- Temperature pulls the two phases opposite ways
- Stokes law
- terminal velocity
- Stokes' law and terminal velocity
- viscous force on a small sphere
- at terminal velocity
- so the coefficient of viscosity
- Falling ball
- Weighing and floating
- Bernoulli
- Bernoulli's equation
- the full statement
- rearranged
- Pipe, Venturi meter, Torricelli
- Lift on a wing and a spinning ball
- Units and dimensions
- P pressure
- T surface tension
- η coefficient of viscosity
- ρ density
- R_n Reynolds number
- Traps that cost marks
- Tricks that save time
