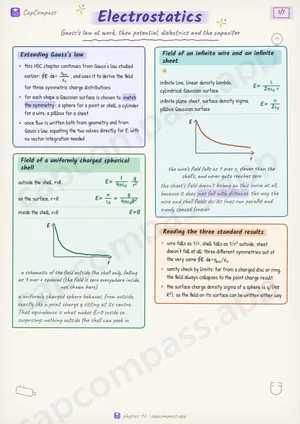

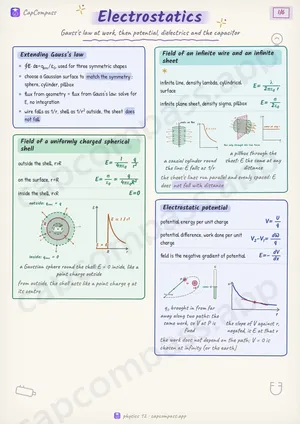

Electrostatics in one look
Gauss's law at work, then potential, dielectrics and the capacitor
Extending Gauss's law
- ointE· ds=q_enc/ε_0, used for three symmetric shapes
- choose a Gaussian surface to match the symmetry: sphere, cylinder, pillbox
- flux from geometry = flux from Gauss's law: solve for E, no integration
- wire falls as 1/r, shell as 1/r^2 outside, the sheet does not fall
Field of a uniformly charged spherical shell
- outside the shell, r>R
E=1/4πε_0q/r^2 - on the surface, r=R
E=σ/ε_0=q/4πε_0R^2 - inside the shell, r<R
E=0
Field of an infinite wire and an infinite sheet
- infinite line, density lambda, cylindrical surface
E=λ/2πε_0 r - infinite plane sheet, density sigma, pillbox
E=σ/2ε_0
Electrostatic potential
- potential energy per unit charge
V=U/q - potential difference, work done per unit charge
V_2-V_1=dW/q - field is the negative gradient of potential
E=-dV/dx
Page 1 of 6. The full sheet, all 6 pages, opens free in the app.
