Semiconductor Devices in one look
a diode rectifies, special junctions sense and emit light, and a transistor's thin base runs both amplifiers and logic gates
Why rectify at all
- mains is AC, 230 V 50 Hz in India; gadgets need steady DC
- rectification converts AC to DC: diodes conduct forward, block reverse
- supply chain: transformer, rectifier, filter, voltage regulator
- the rectifier makes DC unidirectional but pulsating
- the filter removes the ripple, the regulator holds the output steady

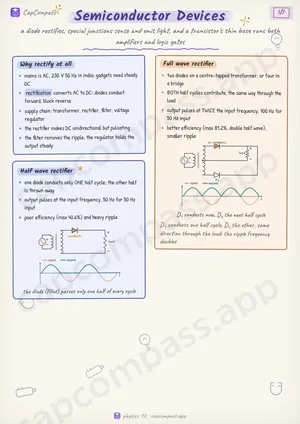

Half wave rectifier
- one diode conducts only ONE half cycle; the other half is thrown away
- output pulses at the input frequency, 50 Hz for 50 Hz input
- poor efficiency (max 40.6%) and heavy ripple
Full wave rectifier
- two diodes on a centre-tapped transformer, or four in a bridge
- BOTH half cycles contribute, the same way through the load
- output pulses at TWICE the input frequency, 100 Hz for 50 Hz input
- better efficiency (max 81.2%, double half wave), smaller ripple
