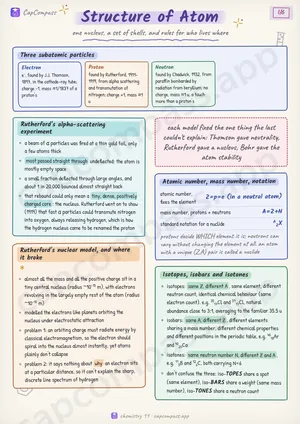

Structure of Atom in one look
one nucleus, a set of shells, and rules for who lives where
Three subatomic particles
- Electron: e^-, J.J. Thomson, 1897, cathode-ray tube. charge -1, mass ≈1/1837 of a proton's
- Proton: Rutherford, 1911-1919, alpha scattering and nitrogen transmutation. charge +1, mass ≈1 u
- Neutron: Chadwick, 1932, paraffin bombarded by beryllium radiation. no charge, mass ≈1 u, a shade above a proton's
Rutherford's alpha-scattering experiment
- a beam of α particles fired at a thin gold foil, only a few atoms thick
- most passed straight through undeflected: the atom is mostly empty space
- a small fraction deflected through large angles, about 1 in 20,000 bounced almost straight back
- that rebound meant a tiny, dense, positively charged core: the nucleus
- 1919: fast α particles turned nitrogen into oxygen, always releasing hydrogen, later renamed the proton
Rutherford's nuclear model, and where it broke
- mass and positive charge sit in a tiny nucleus (~10^-15 m), electrons revolve outside (~10^-10 m)
- modelled electrons like planets orbiting the nucleus under electrostatic attraction
- problem 1: an orbiting charge must radiate energy, so it should spiral in instantly, yet atoms don't
- problem 2: says nothing about why an electron sits at a given distance or hydrogen's line spectrum
Atomic number, mass number, notation
- atomic number, fixes the element
Z=p=e (in a neutral atom) - mass number, protons + neutrons
A=Z+N - standard notation for a nuclide
^A_ZX
Isotopes, isobars and isotones
- isotopes: same Z, different A, identical chemical behaviour, e.g. ^35_17Cl and ^37_17Cl
- isobars: same A, different Z, different elements, different chemical properties, e.g. ^40_18Ar and ^40_20Ca
- isotones: same neutron number N, different Z and A, e.g. ^11_5B and ^12_6C, both N=6
- don't confuse: iso-**TOPES** share a spot, iso-**BARS** a weight, iso-**TONES** a neutron count
Page 1 of 5. The full sheet, all 5 pages, opens free in the app.
What this Structure of Atom sheet covers
- Three subatomic particles
- Electron
- Proton
- Neutron
- Rutherford's alpha-scattering experiment
- Rutherford's nuclear model, and where it broke
- Atomic number, mass number, notation
- atomic number, fixes the element
- mass number, protons + neutrons
- standard notation for a nuclide
- Isotopes, isobars and isotones
- Worked: average atomic mass from isotope abundance
- Bohr's postulates
- Bohr model results, for H and hydrogen-like ions
- radius of the nth orbit
- energy of the nth orbit
- any transition: Rydberg formula
- Hydrogen's spectral series
- Lyman
- Balmer
- Paschen
- Brackett / Pfund
- Worked: wavelength of a Balmer transition
- Limitations of Bohr's model
- Dual nature of matter: de Broglie
- wavelength associated with a moving particle
- Heisenberg's uncertainty principle
- position and momentum can't both be known exactly
- Quantum mechanical model, in brief
- The four quantum numbers
- n: principal
- l: azimuthal
- ml: magnetic
- ms: spin
- Shells, subshells and orbital counts
- Shapes of s, p, d orbitals
- s orbital
- p orbital
- d orbital
- Aufbau principle: the (n+l) rule
- Pauli exclusion & Hund's rule
- Electronic configuration: the exceptions
- Isoelectronic species
- Traps that cost marks
- Tricks that save time
